WHC – Light Industrial Plasma Table
WHC – Light Industrial Plasma Table
In stock
Water Height Control | Entry-Level & Light Industrial Manufacturing

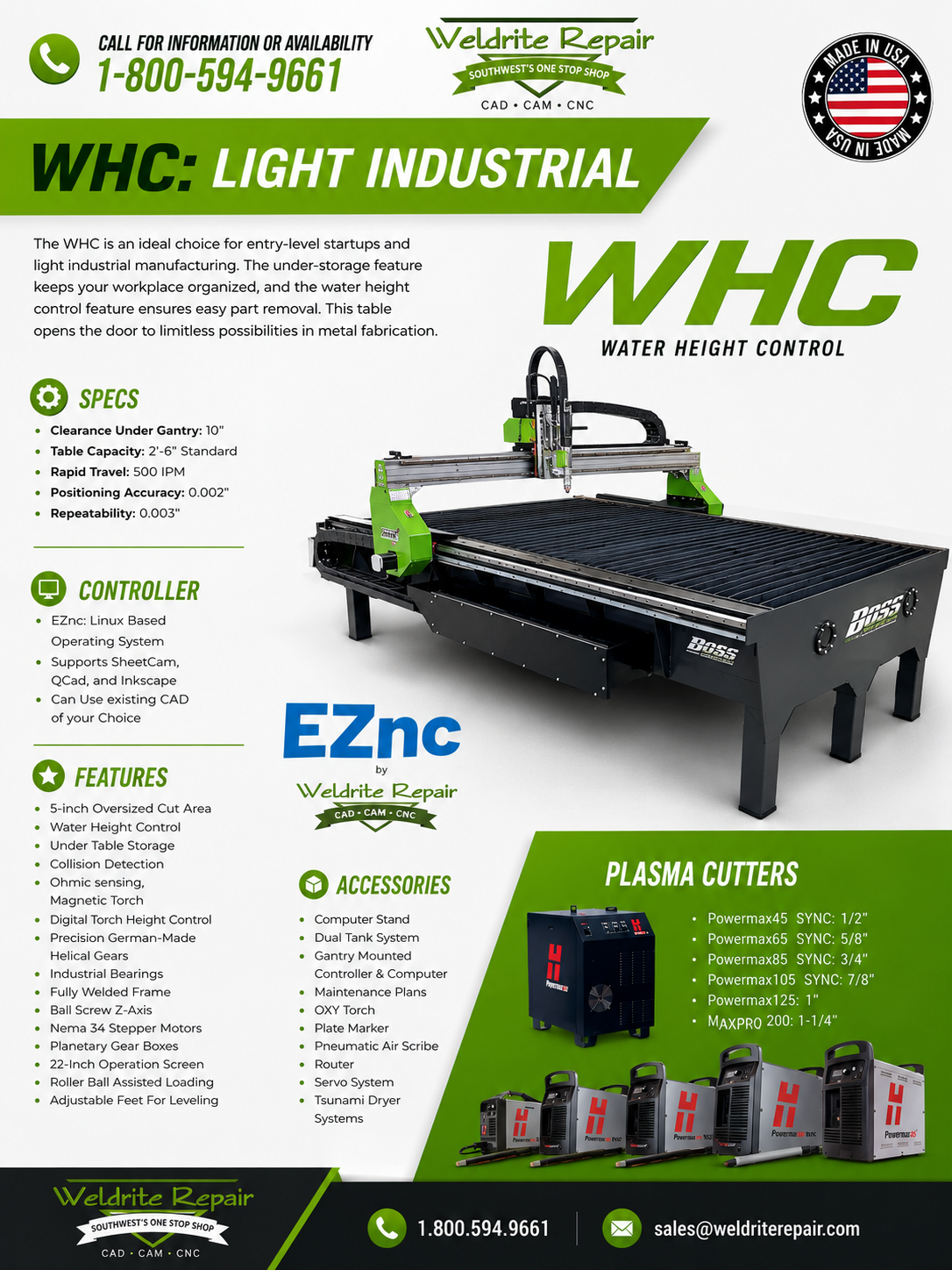

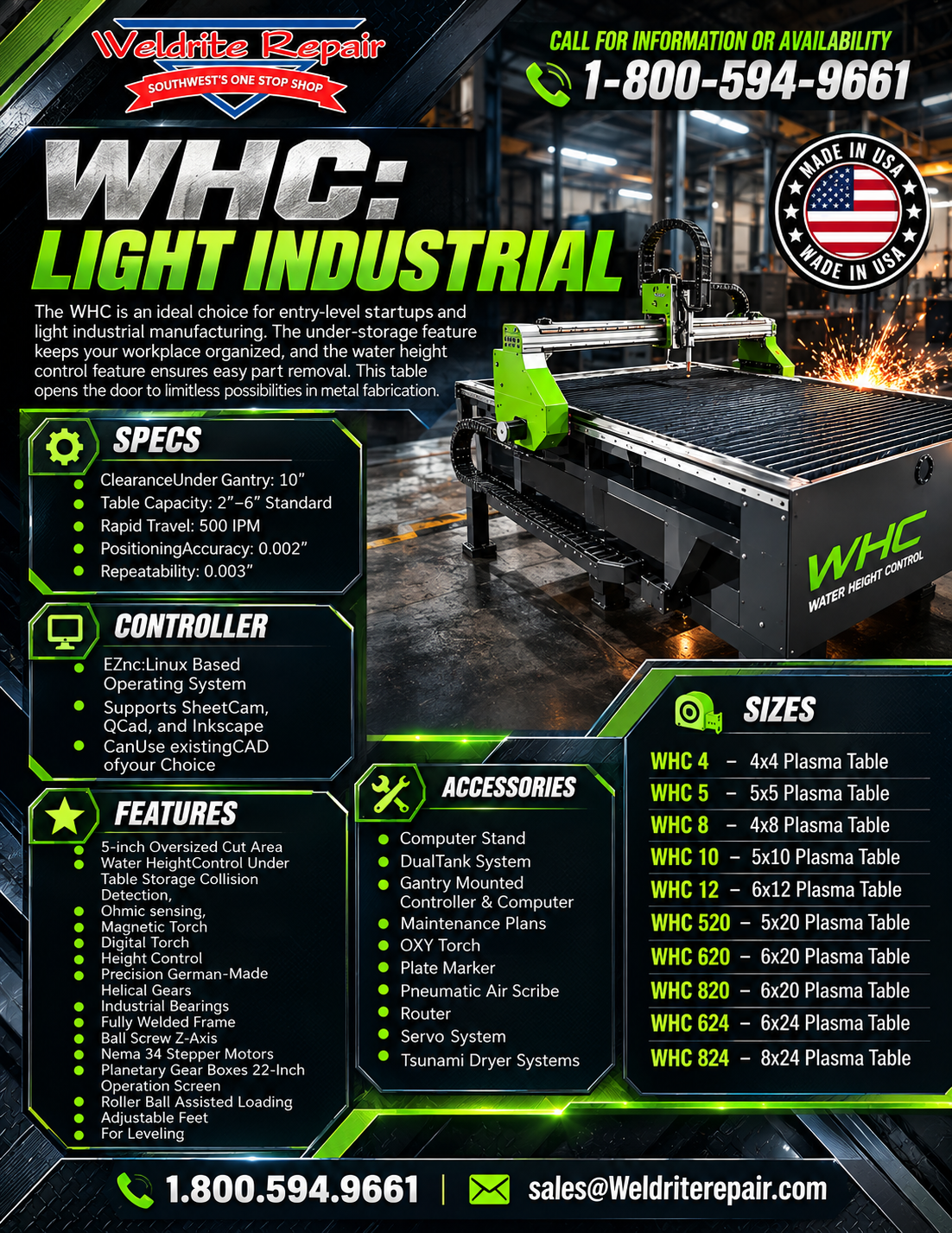

The WHC (Water Height Control) plasma table is an ideal solution for entry-level startups and light industrial manufacturing. Designed to provide reliable, precise plasma cutting while keeping your workspace organized, the WHC combines a durable welded frame, water height control, and an easy-to-use EZnc Linux-based operating system.
With under-table storage and a large oversized cutting area, the WHC gives fabricators the flexibility they need for a wide range of metal fabrication applications.
Key Specifications
- Clearance Under Gantry: 10"
- Table Capacity: 2'–6' Standard
- Rapid Travel: 500 IPM
- Positioning Accuracy: 0.002"
- Repeatability: 0.003"
Controller
The WHC comes equipped with an EZnc Linux-based operating system designed for straightforward CNC plasma cutting.
- EZnc Linux-Based Operating System
- Supports SheetCam
- Supports QCad
- Supports Inkscape
- Compatible with existing CAD software of your choice
Features
- 5-inch oversized cut area
- Water height control
- Under-table storage
- Collision detection
- Ohmic sensing
- Magnetic torch
- Digital torch height control
- Precision German-made helical gears
- Industrial bearings
- Fully welded frame
- Ball screw Z-axis
- NEMA 34 stepper motors
- Planetary gearboxes
- 22-inch operation screen
- Roller ball-assisted loading
- Adjustable feet for leveling
Available Accessories
- Computer stand
- Dual tank system
- Gantry-mounted controller and computer
- Maintenance plans
- OXY torch
- Plate marker
- Pneumatic air scribe
- Router
- Servo system
- Tsunami dryer systems
Compatible Plasma Cutters
Hypertherm Powermax Series
- Powermax45 SYNC – 1/2"
- Powermax65 SYNC – 5/8"
- Powermax85 SYNC – 3/4"
- Powermax105 SYNC – 7/8"
- Powermax125 – 1"
- MAXPRO 200 – 1-1/4"
Why Choose the WHC?
The WHC is built for businesses looking for a cost-effective CNC plasma cutting solution without sacrificing essential performance and reliability. Its water height control helps manage cutting operations, while the oversized cutting area, durable construction, and multiple software compatibility options make it versatile for a variety of fabrication needs.
Made in the USA.
Need Information or Availability?
Call 1-800-594-9661 or contact Weldrite Repair at sales@weldriterepair.com for pricing, availability, accessories, and configuration options.
Weldrite Repair — Southwest's One Stop Shop | CAD • CAM • CNC
