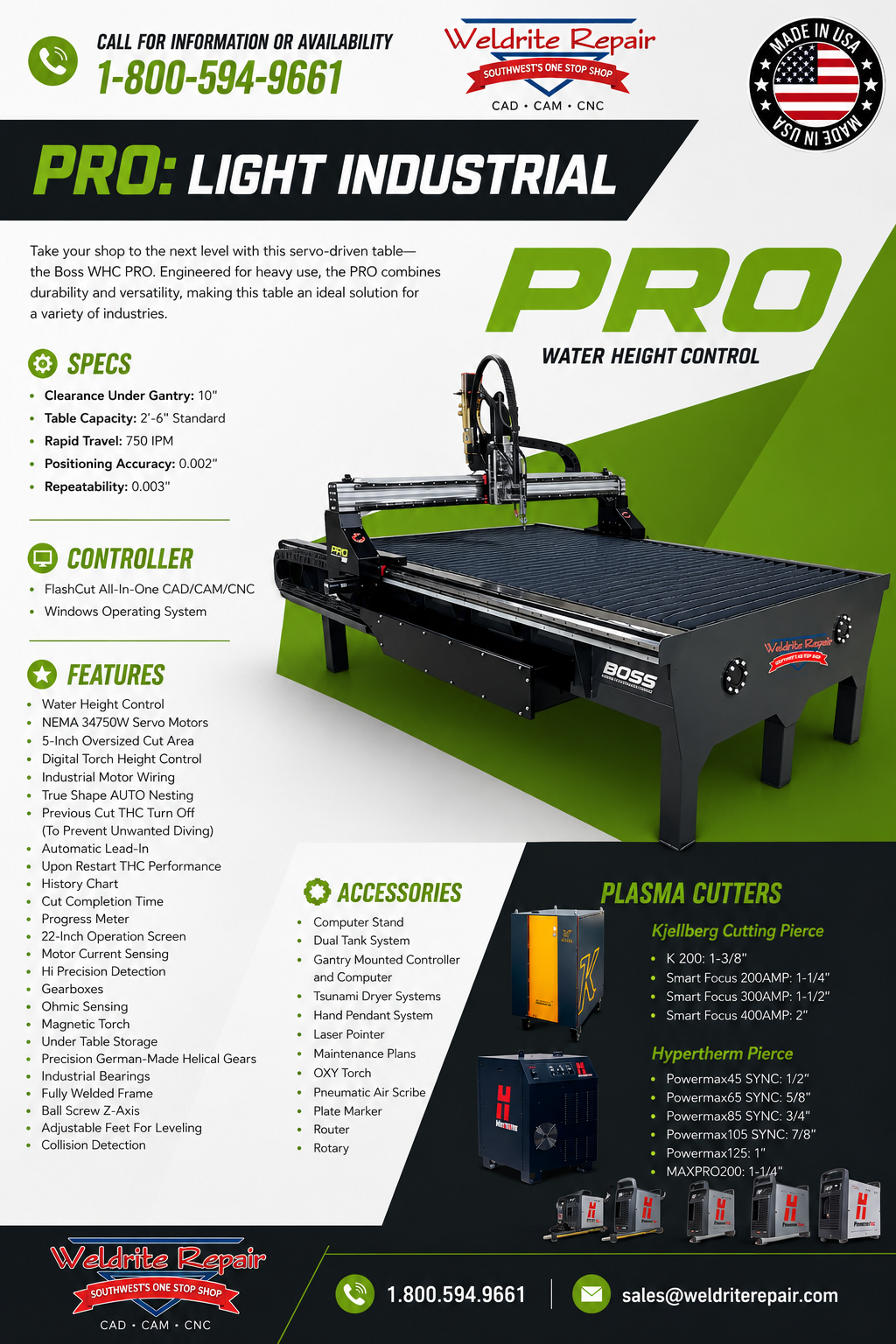

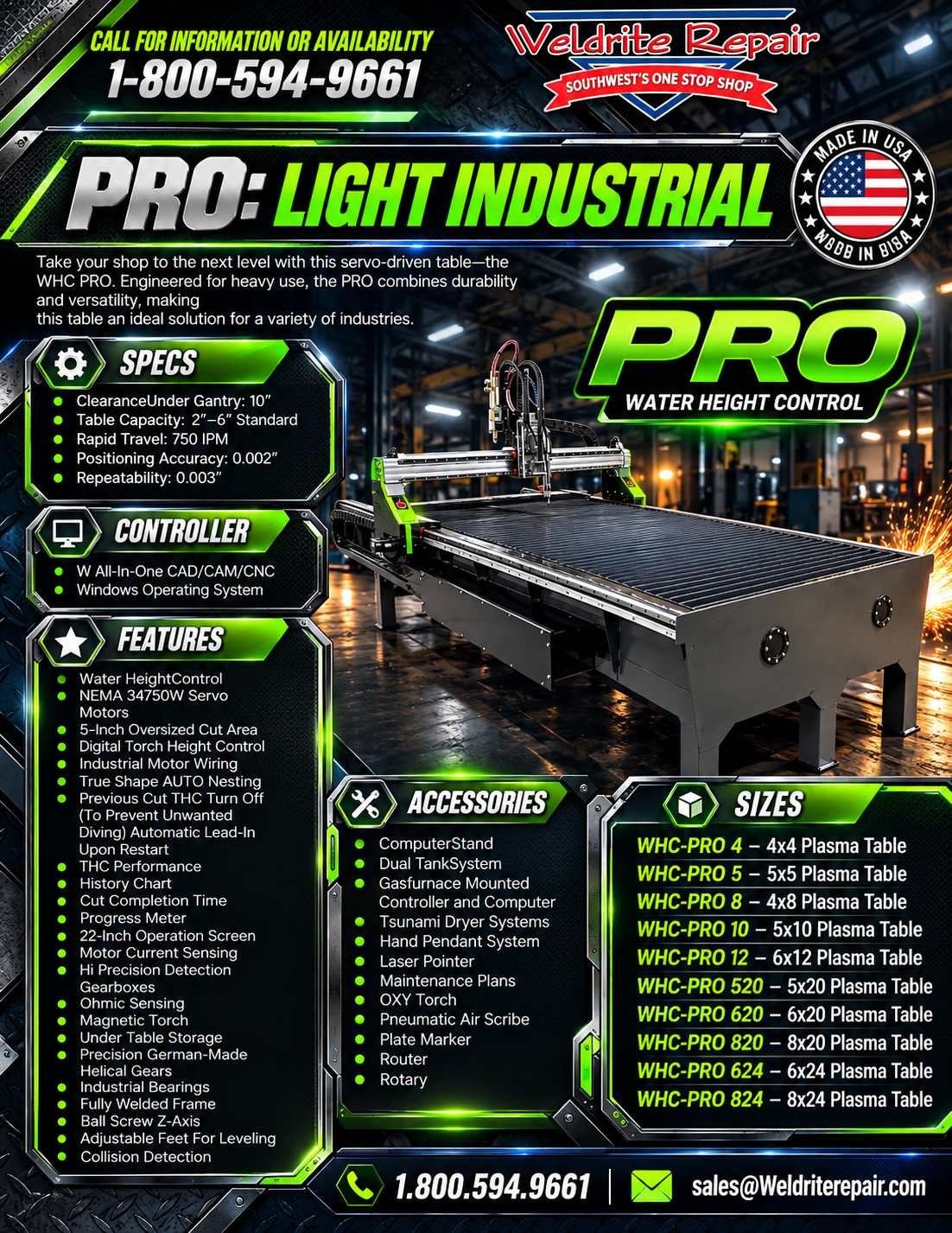

Boss WHC PRO with Water Height Control

Take your fabrication shop to the next level with the PRO: Light Industrial CNC Plasma Table. Built for heavy use, the Boss WHC PRO combines a servo-driven motion system, water height control, precision cutting, and versatile configuration options for a wide range of industrial applications.

Designed for shops that need dependable performance without moving into a larger heavy-industrial system, the PRO provides the accuracy, speed, and flexibility needed for professional metal fabrication.

---

Key Specifications

• Clearance Under Gantry: 10"
• Table Capacity: 2"–6" Standard
• Rapid Travel: 750 IPM
• Positioning Accuracy: 0.002"
• Repeatability: 0.003"
• Servo System: NEMA 34, 750W servo motors
• Cut Area: 5" oversized cut area
• Water Height Control: Yes

---

CNC Controller

The PRO: Light Industrial table is equipped with:

• FlashCut All-In-One CAD/CAM/CNC
• Windows Operating System
• Professional CNC motion control
• Automated cutting and positioning

---

Features

The PRO is engineered with a comprehensive set of features for precision and production efficiency:

• Water Height Control
• NEMA 34 750W Servo Motors
• 5-Inch Oversized Cut Area
• Digital Torch Height Control
• Industrial Motor Wiring
• TrueShape AUTO Nesting
• Previous Cut THC Turn-Off to Help Prevent Unwanted Diving
• Automatic Lead-In
• Automatic Lead-In Upon Restart
• THC Performance History Chart
• Cut Completion Time Progress Meter
• 22-Inch Operation Screen
• Motor Current Sensing
• High-Precision Detection
• Gearboxes
• Ohmic Sensing
• Magnetic Torch
• Under-Table Storage
• Precision German-Made Helical Gears
• Industrial Bearings
• Fully Welded Frame
• Ball Screw Z-Axis
• Adjustable Feet for Leveling
• Collision Detection

---

Available Accessories

Customize your PRO table with a selection of accessories, including:

• Computer Stand
• Dual Tank System
• Gantry-Mounted Controller & Computer
• Tsunami Dryer Systems
• Hand Pendant System
• Laser Pointer
• Maintenance Plans
• OXY Torch
• Pneumatic Air Scribe
• Plate Marker
• Router
• Rotary

---

Plasma Cutter Options

The PRO can be configured with multiple plasma cutting systems.

Kjellberg Cutting Pierce

• K 200: Up to 1-3/8"
• Smart Focus 200AMP: Up to 1-1/4"
• Smart Focus 300AMP: Up to 1-1/2"
• Smart Focus 400AMP: Up to 2"

Hypertherm Pierce

• Powermax45 SYNC: Up to 1/2"
• Powermax65 SYNC: Up to 5/8"
• Powermax85 SYNC: Up to 3/4"
• Powermax105 SYNC: Up to 7/8"
• Powermax125: Up to 1"
• MAXPRO200: Up to 1-1/4"

---

Ideal For

The PRO: Light Industrial CNC Plasma Table is an excellent solution for:

• Metal fabrication shops
• Welding and fabrication businesses
• Industrial manufacturing
• Custom metalwork
• Production cutting
• Plate processing
• Automotive and equipment fabrication
• Shops upgrading from entry-level plasma tables

---

Why Choose the PRO?

The Boss WHC PRO delivers a strong combination of speed, precision, automation, and versatility. With water height control, servo-driven motion, automated nesting, advanced torch-height control, and multiple plasma cutter options, it is designed to help professional fabricators increase productivity while maintaining consistent cutting performance.
