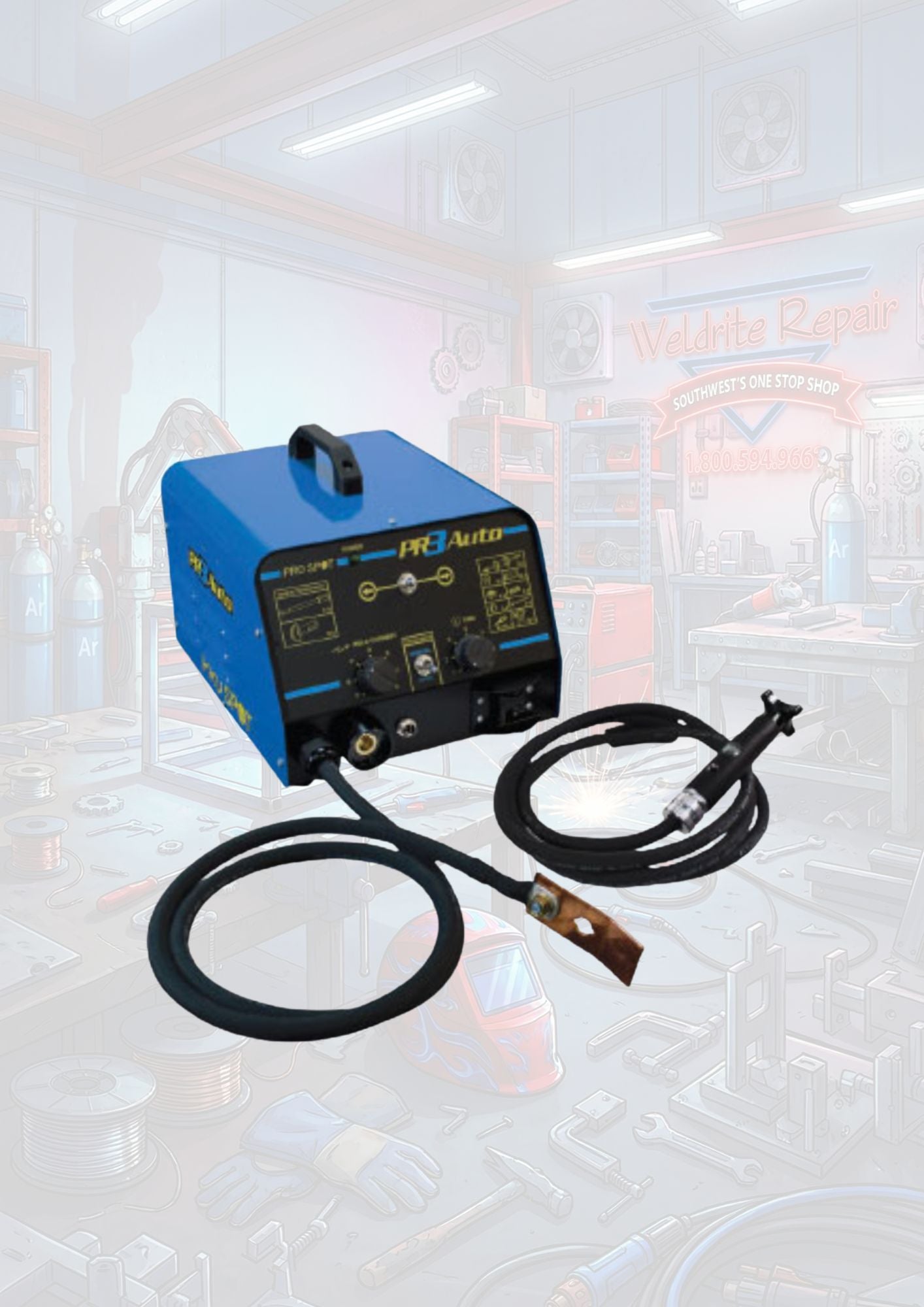

PR-3 | RESISTANCE WELDER

Our versatile resistance type welder delivers exceptional performance and flexibility for a wide range of light welding and dent pulling applications. Originally designed for the body shop industry, this welder is capable of shrinking, single-sided spot welding, and attachment of threaded studs, nuts, and mounting clip rivets for windshields. Additionally, it is ideal for patchwork welding tasks. The biggest advantage of this welder is that it utilizes minimal heat compared to other welding methods, while still providing a clean and user-friendly experience. After welding, there is minimal cleanup required, making it an efficient and reliable tool for any workshop.

Components List

The Auto feature is very quick and user friendly due to the fact that it does not weld instantly like other higher priced systems on the market. Electrodes that can be used with the Auto-Mode include:

1. Pull Key Electrode (PS-880)

2. 4mm Stud Holder Electrode (PS-820)

3. 6mm Stud Holder Electrode (PS-839)

4. Washer Adapter (PS-840)

5. Rivet Holder (PS-870)

6. Spot Hammer Assembly (CLP-70)

7. Weld-on Shaft Dent Pulling Kit (CLP-110)

8. Weld-on Shafts (SA-0153, SA-0152, SA-0151)

TECHNICAL SPECIFICATIONS

Input Voltage: 1 Phase 208-230V

Input Amperage: 24A

Input Cable: 30' (9m)

Output Amperage: 2000A Max (at) tips

Welding Cable: 8' (2.5m)

Dimensions: 18" X 14" X 12"

FEATURES

Auto Weld

Auto senses & welds when it makes contact with the workpiece, saving time and hassle.

T-Dent Handle

Provides additional access and mobility to apply pull keys tightly together.

Versatility For Any Job

With the turn of a wing nut, you can easily switch to single-sided welding applications including washer nut & bolt, nail, rivet, stitch & more.
