PR-220MV
PR-220MV
In stock

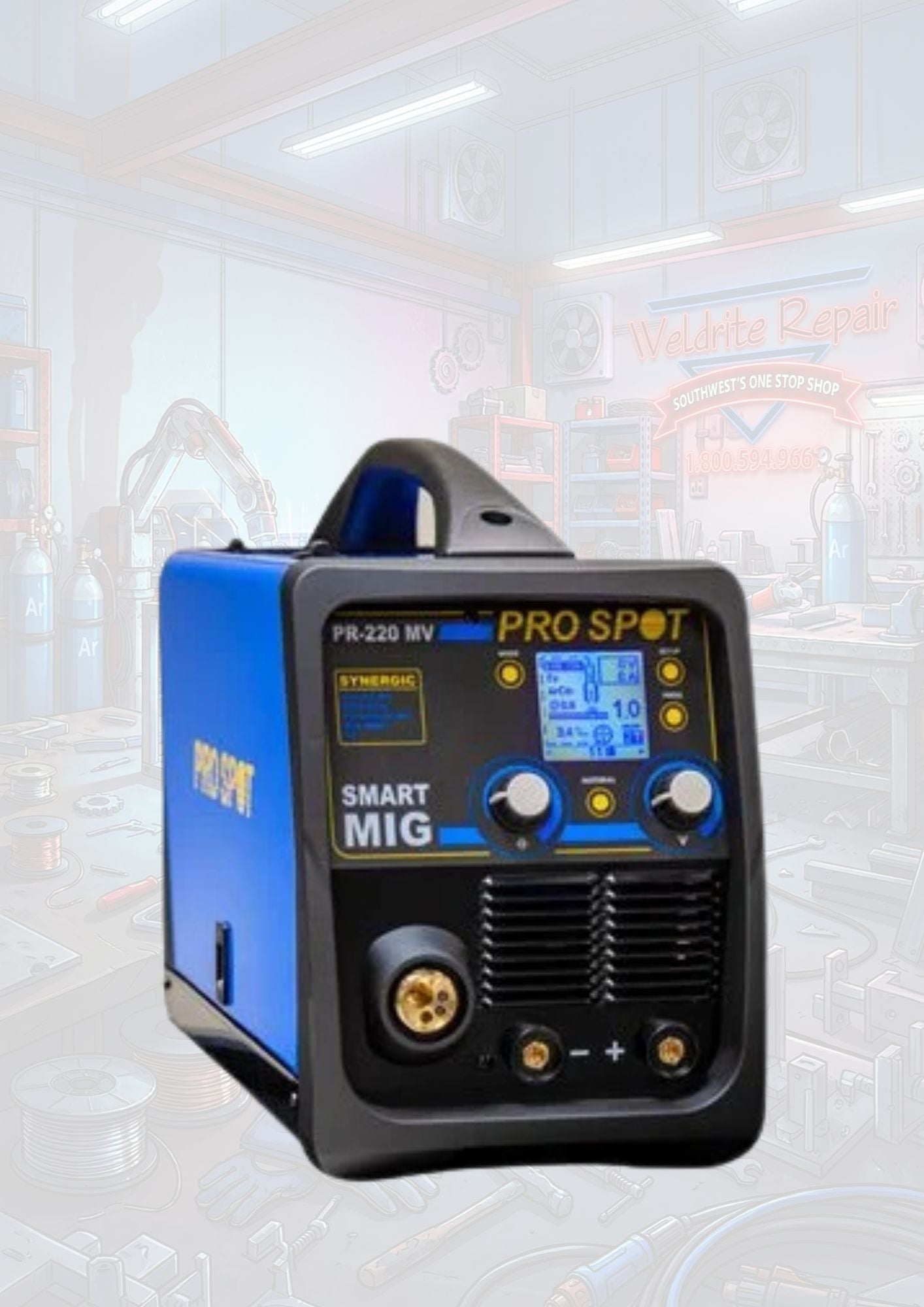

The PR-220MV is a microprocessor-controlled, multi-process inverter Welder. All functions can be easily selected on the front panel. The digital LCD display shows the welding voltage and current and all the parameters selected. The PR-220MV is ideal for auto body shops, sheet metal fabrication, light maintenance, and repair at home, on the ranch, or in the shop.
PR-220MV Component List
The PR-220MV features an easy-to-use, automatic setup. A quick spin of the dial and the machine will automatically set all the parameters that you need. Take full control by using the dials to manually select settings as well.1. Mode Button: Welding process selector key - MIG/MAG, TIG or Stick
2. Welder Screen: Digital screen to select welder settings
3. Setup Button: Select weld modes such as Synergic or Manual
4. Save and Recall Button: Save welding programs and recall them
5. Wire Speed Knob: Sets the wire speed
6. Material Button: Select which type of material you are welding, select the type of gas and the wire diameter
7. Voltage Knob: Sets in the voltage or material thickness
COMPATIBLE WELDING WIRES
The PR-220MV is 1 Spool and 1 Torch MIG Welder with the option to switch between multiple metal types including aluminum, steel, and silicon bronze. Wire types that can be used with the PR-220MV:
Aluminum 0.8 - 1.0 dia.
Steel 0.6 - 1.0 dia.
Flux core 0.8 - 1.0 dia.
Stainless Steel 0.8 - 1.0 dia.
Brazing 0.8 - 1.0 dia.
TECHNICAL SPECIFICATIONS
Input Power:
- Single Phase
- 230 or 115V AC
- 50/60 hz
Output Rating: MIG
- 200 amp dc @ 35 % duty cycle
- 120 amps dc @ 100% duty cycle
TIG
- 200 amp dc @ 35 % duty cycle
- 120 amps dc @ 100% duty cycle
MMA (STICK)
- 200 amp dc @ 35 % duty cycle
- 120 amps dc @ 100% duty cycle
Output Range:MIG: 20 amps - 200 amps
TIG: 5 amps - 200 amps
MMA: 5 amps - 200 ampsDimensions:
20" x 11" x 17" (LxWxH)
Weight:
50 lbs.
FEATURES
- Multiple Welding Processes
- Inverter Technology
- Automatic Line Voltage Compensation
- Multi-Voltage - 115volt/220 Volt Input
- Power Generator Friendly
