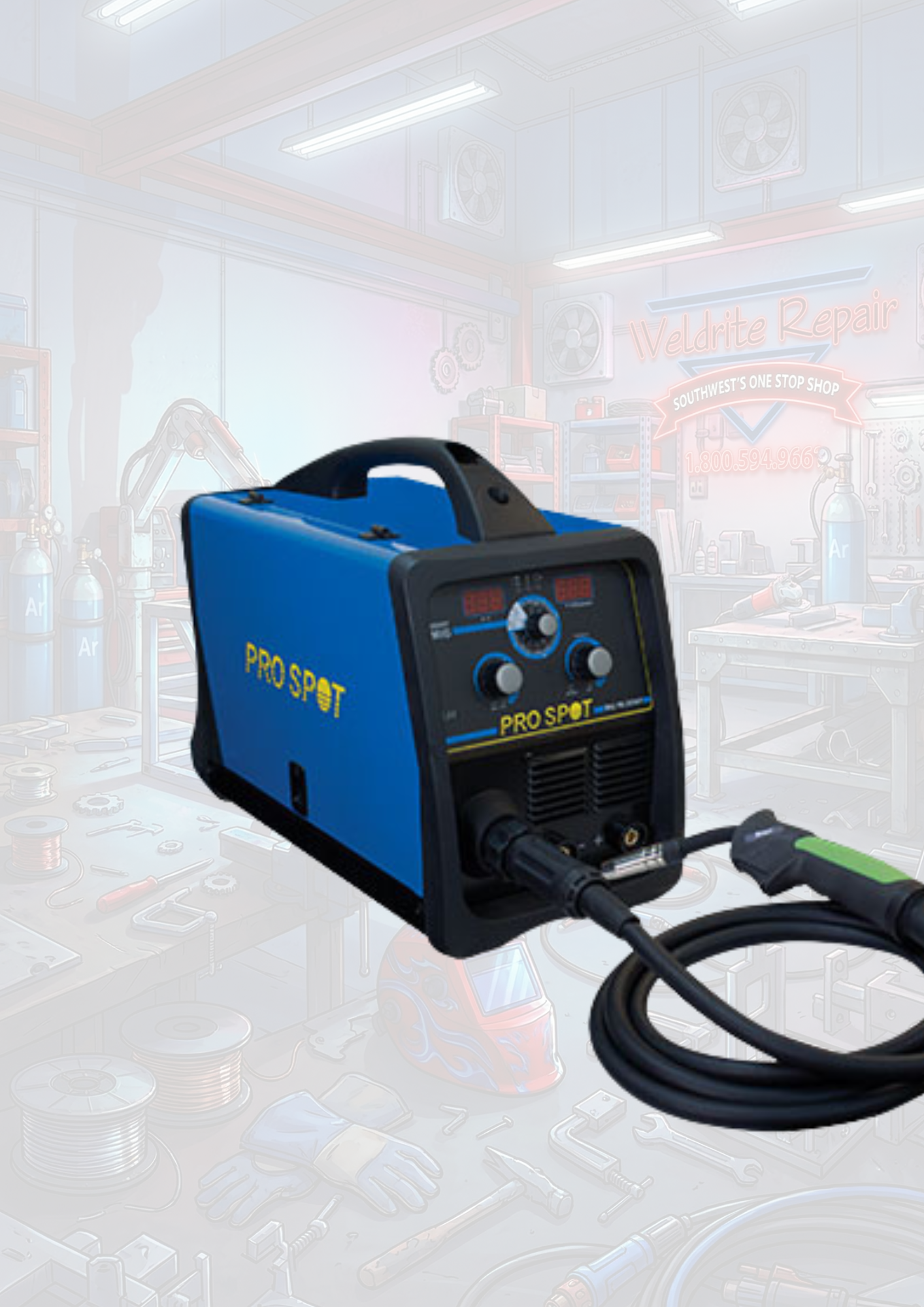

PR-205MV | SYNERGIC MIG WELDER

The PR-205MV is the new compact, lightweight, microprocessor-controlled welding inverter suitable for MIG/MAG, MMA + TIG welding processes. The PR-205MV is unmatched in welding and gives the operator complete control in manual mode or does the adjustments for you in synergic mode. The “synergy” helps the user adjust to the correct welding parameters. Simply select the desired combination between wire diameter, gas type and thickness to be welded; and the wire speed will be adjusted automatically by the machine.

Synergic MIG Welder PR-205MV Brochure

Synergic MIG Welder PR-205MV Component List

Synergic MIG Welder PR-205MV Insrtuction Manual

FRONT PANEL

The PR-205MV features an easy-to-use, automatic setup. A quick spin of the dial and the machine will automatically set all the parameters that you need. Take full control by using the dials to manually select settings as well.

1. Amperage/Wire Speed Display
2. Indicators
3. Voltage/Thickness Display
4. Amperage/Wire Speed
5. Weld Mode (Select Between MIG, Synergic MIG, TIG, Stick & Manual Modes)
6. Thickness/Voltage

COMPATIBLE WELDING WIRES

The PR-205MV has 1 Spool and 1 Torch.

Aluminum 0.8 - 1.0 dia.

Steel 0.6 - 1.0 dia.

Flux core 0.8 - 1.0 dia.

Stainless Steel 0.8 - 1.0 dia.

Brazing 0.8 - 1.0 dia.

TECHNICAL SPECIFICATIONS

Input Power

• Single Phase
• 115/230 Volt AC Input
• 60 hz

No Load Voltage

25VAC

Open-circuit Voltage

25VDC

Current Range

5 - 170A

Duty Cycle

• 25% 170A
• 60% 110A
• 100% 85A

Insulation
Type H
Protection Degree
IP22S
Dimensions18.9" x 15.1" x 8.7" (LxWxH)
Weight23 lbs

FEATURES

• Easy “Set and Weld” Mode
• Inverter Technology
• Automatic Line Voltage Compensation
• Light and Versatile
• Patented Torch Storage and Cable Wrapper
• Excellent Results Even For Novice Users
• Power Generator Friendly
• Flex-line Technology
• Synergic + Manual Mode
