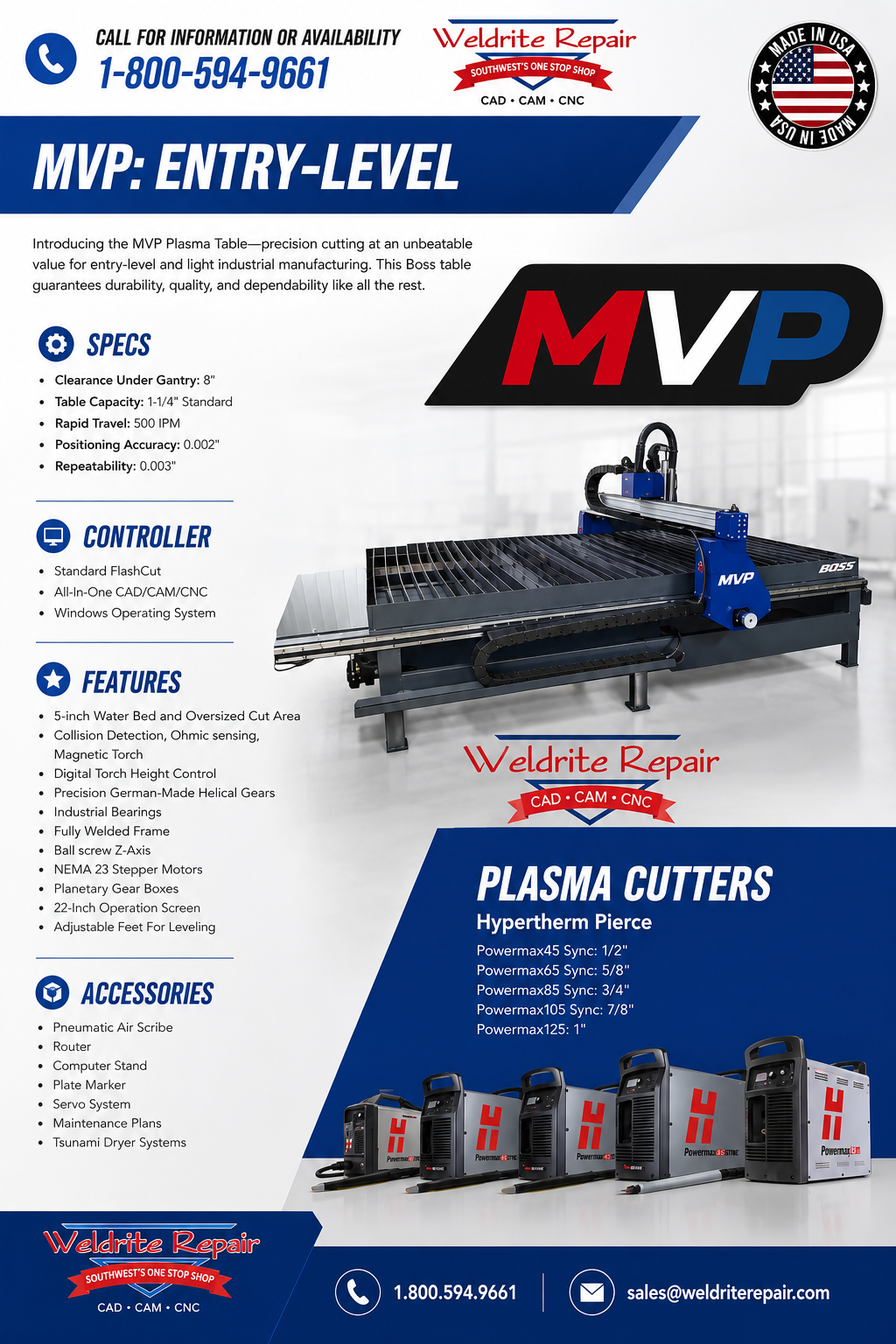

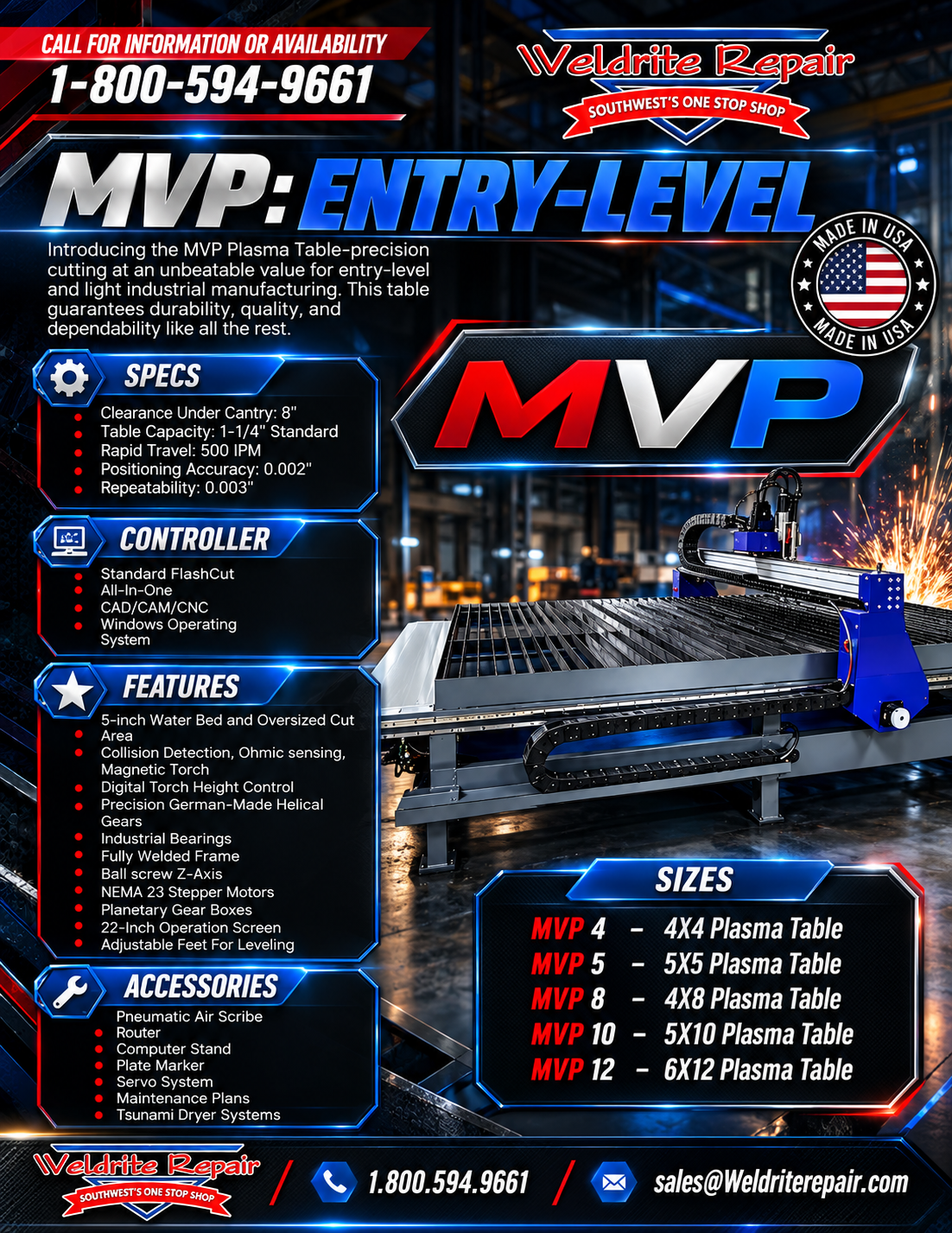

Introducing the MVP Plasma Table — a dependable CNC plasma cutting solution designed for entry-level and light industrial manufacturing.

The Boss MVP combines durability, precision, and ease of operation in a cost-effective package. With a 5-inch water bed, oversized cut area, digital torch-height control, precision gearing, and CNC automation, the MVP is an excellent choice for fabrication shops looking to add or upgrade their plasma cutting capabilities.

The system is designed to provide reliable cutting performance while giving operators access to professional CNC features and multiple plasma cutter options.

---

Specifications

• Clearance Under Gantry: 8"
• Table Capacity: 1-1/4" Standard
• Rapid Travel: 500 IPM
• Positioning Accuracy: 0.002"
• Repeatability: 0.003"
• Water Bed: 5"
• Oversized Cut Area: Yes

---

Controller

The MVP includes:

• Standard FlashCut
• All-In-One CAD/CAM/CNC
• Windows Operating System

This provides an integrated platform for CNC programming, cutting, and machine operation.

---

Features

The MVP Plasma Table includes:

• 5-inch Water Bed
• Oversized Cut Area
• Collision Detection
• Ohmic Sensing
• Magnetic Torch
• Digital Torch Height Control
• Precision German-Made Helical Gears
• Industrial Bearings
• Fully Welded Frame
• Ball Screw Z-Axis
• NEMA 23 Stepper Motors
• Planetary Gear Boxes
• 22-Inch Operation Screen
• Adjustable Feet for Leveling

---

Accessories

Available accessories include:

• Pneumatic Air Scribe
• Router
• Computer Stand
• Plate Marker
• Servo System
• Maintenance Plans
• Tsunami Dryer Systems

---

Plasma Cutter Options

The MVP supports Hypertherm plasma cutter systems.

Hypertherm Pierce

• Powermax45 SYNC: Up to 1/2"
• Powermax65 SYNC: Up to 5/8"
• Powermax85 SYNC: Up to 3/4"
• Powermax105 SYNC: Up to 7/8"
• Powermax125: Up to 1"

---

Ideal For

The MVP is well suited for:

• Entry-level fabrication shops
• Light industrial manufacturing
• Welding shops
• Metal fabrication businesses
• Custom metalwork
• Small production operations
• Shops upgrading from manual plasma cutting
• Businesses adding CNC plasma cutting capabilities

---

Why Choose the MVP?

The MVP Entry-Level CNC Plasma Table provides a strong balance between affordability and professional functionality. Its welded construction, precision mechanical components, water bed, CNC control, and digital torch-height control make it a practical solution for shops that need dependable plasma cutting without stepping into a larger industrial system.
