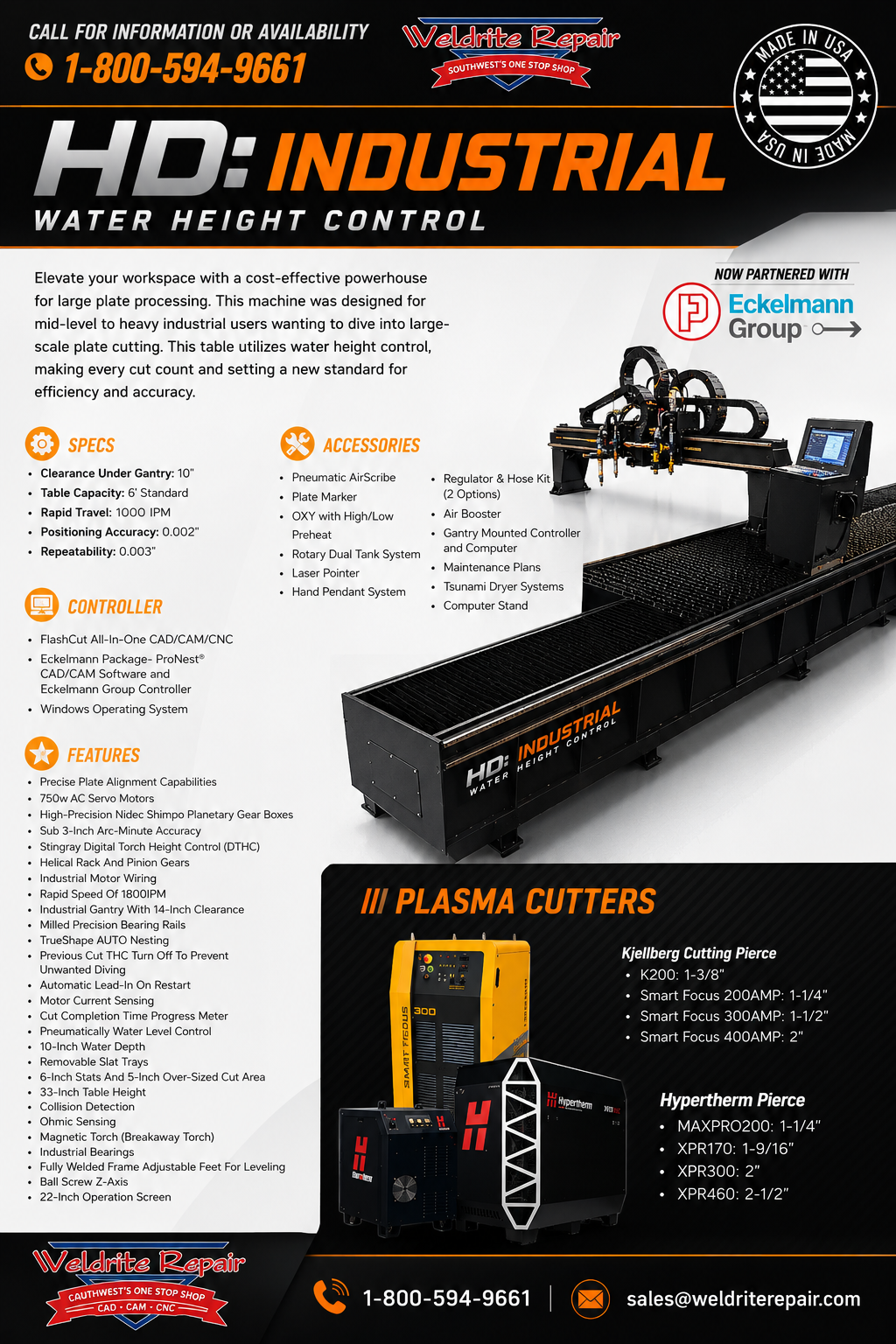

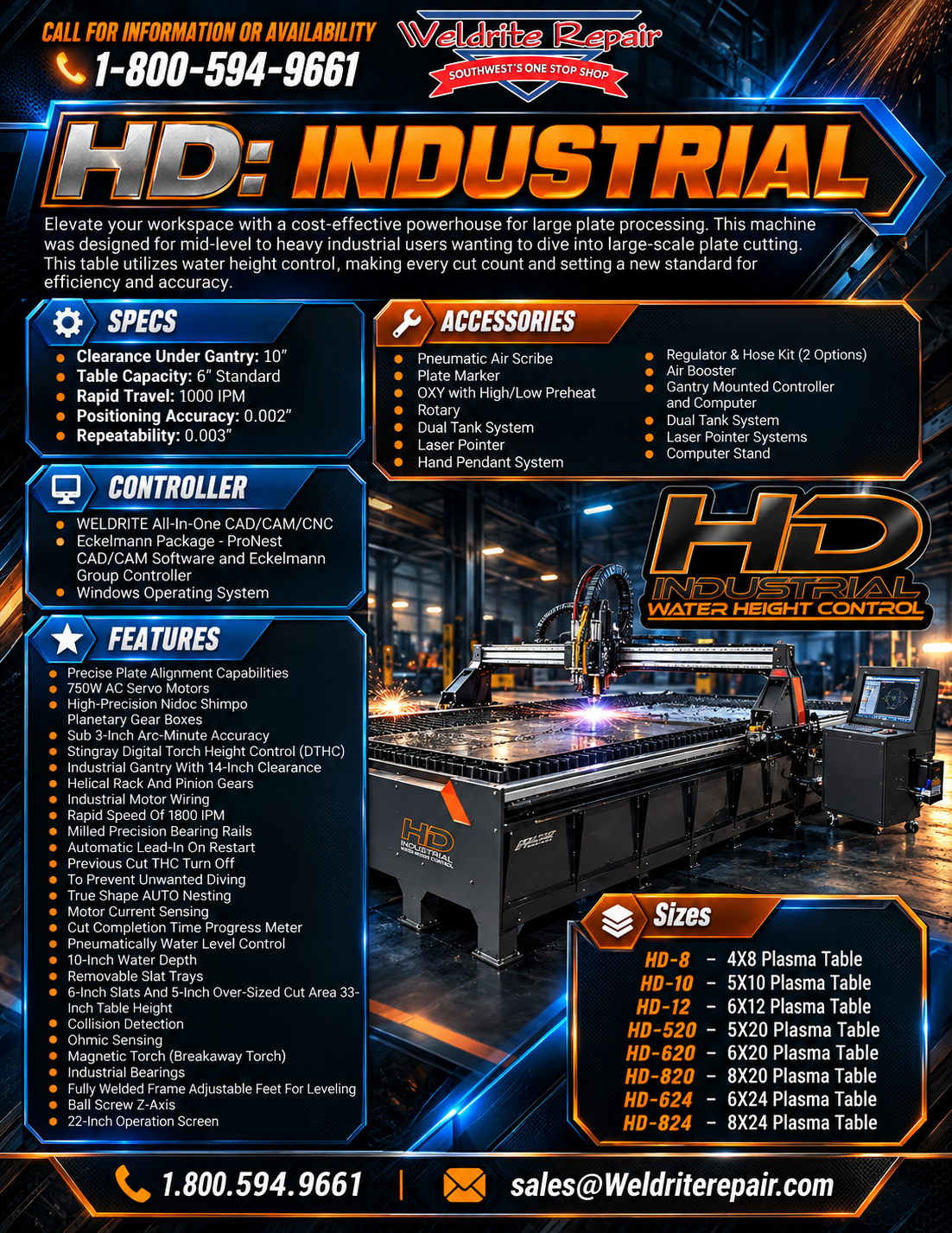

Elevate your fabrication capabilities with the HD Industrial, a cost-effective CNC plasma cutting solution designed for mid-level to heavy industrial applications.

Built for large-plate processing, the HD Industrial utilizes water height control to help improve cutting efficiency and accuracy while providing a reliable platform for demanding metal fabrication.

The system combines a heavy-duty cutting table with precision motion components, advanced torch-height control, automated nesting, and multiple plasma cutter options.

Specifications

• Clearance Under Gantry: 10"
• Table Capacity: 6" Standard
• Rapid Travel: 1,000 IPM
• Positioning Accuracy: 0.002"
• Repeatability: 0.003"
• Water Height Control
• Water Depth: 10"

---

Controller

The HD Industrial includes an advanced CNC control configuration featuring:

• FlashCut All-In-One CAD/CAM/CNC
• Eckelmann Package – ProNest® CAD/CAM Software
• Eckelmann Group Controller
• Windows Operating System

---

Features

• Precise plate alignment capabilities
• 750W AC servo motors
• High-precision Nidec Shimpo planetary gearboxes
• Sub-3-inch arc-minute accuracy
• Stingray Digital Torch Height Control (DTHC)
• Helical rack and pinion gears
• Industrial motor wiring
• Rapid speed up to 1,800 IPM
• Industrial gantry with 14-inch clearance
• Milled precision bearing rails
• TrueShape AUTO Nesting
• Previous-cut THC turn-off to help prevent unwanted diving
• Automatic lead-in on restart
• Motor current sensing
• Cut completion time progress meter
• Pneumatically controlled water level
• 10-inch water depth
• Removable slat trays
• 6-inch slats and 5-inch oversized cut area
• 33-inch table height
• Collision detection
• Ohmic sensing
• Magnetic torch / breakaway torch
• Industrial bearings
• Fully welded frame
• Adjustable leveling feet
• Ball screw Z-axis
• 22-inch operation screen

---

Accessories

The HD Industrial can be configured with the following accessories:

• Pneumatic Air Scribe
• Plate Marker
• OXY with High/Low Preheat
• Rotary
• Dual Tank System
• Laser Pointer
• Hand Pendant System
• Regulator & Hose Kit — 2 options
• Air Booster
• Gantry-Mounted Controller and Computer
• Maintenance Plans
• Tsunami Dryer Systems
• Computer Stand

---

Plasma Cutter Options

Kjellberg Cutting Pierce

• K 200: 1-3/8"
• Smart Focus 200AMP: 1-1/4"
• Smart Focus 300AMP: 1-1/2"
• Smart Focus 400AMP: 2"

Hypertherm Pierce

• MAXPRO200: 1-1/4"
• XPR170: 1-9/16"
• XPR300: 2"
• XPR460: 2-1/2"

---

Ideal For

• Large plate processing
• Mid-level manufacturing
• Heavy industrial fabrication
• Metal fabrication shops
• Production cutting
• CNC plasma cutting
• Industrial steel processing
• Large-scale fabrication
