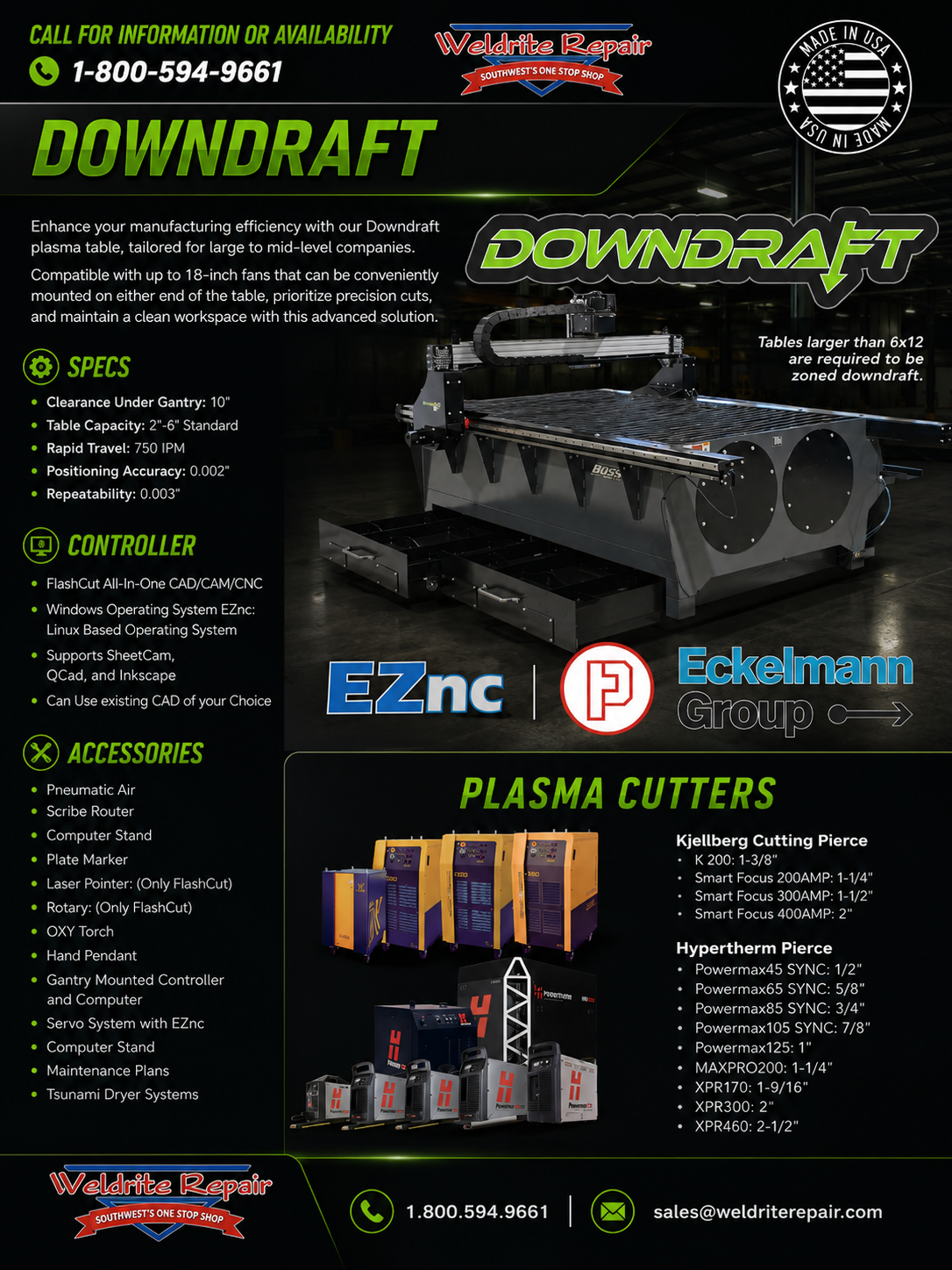

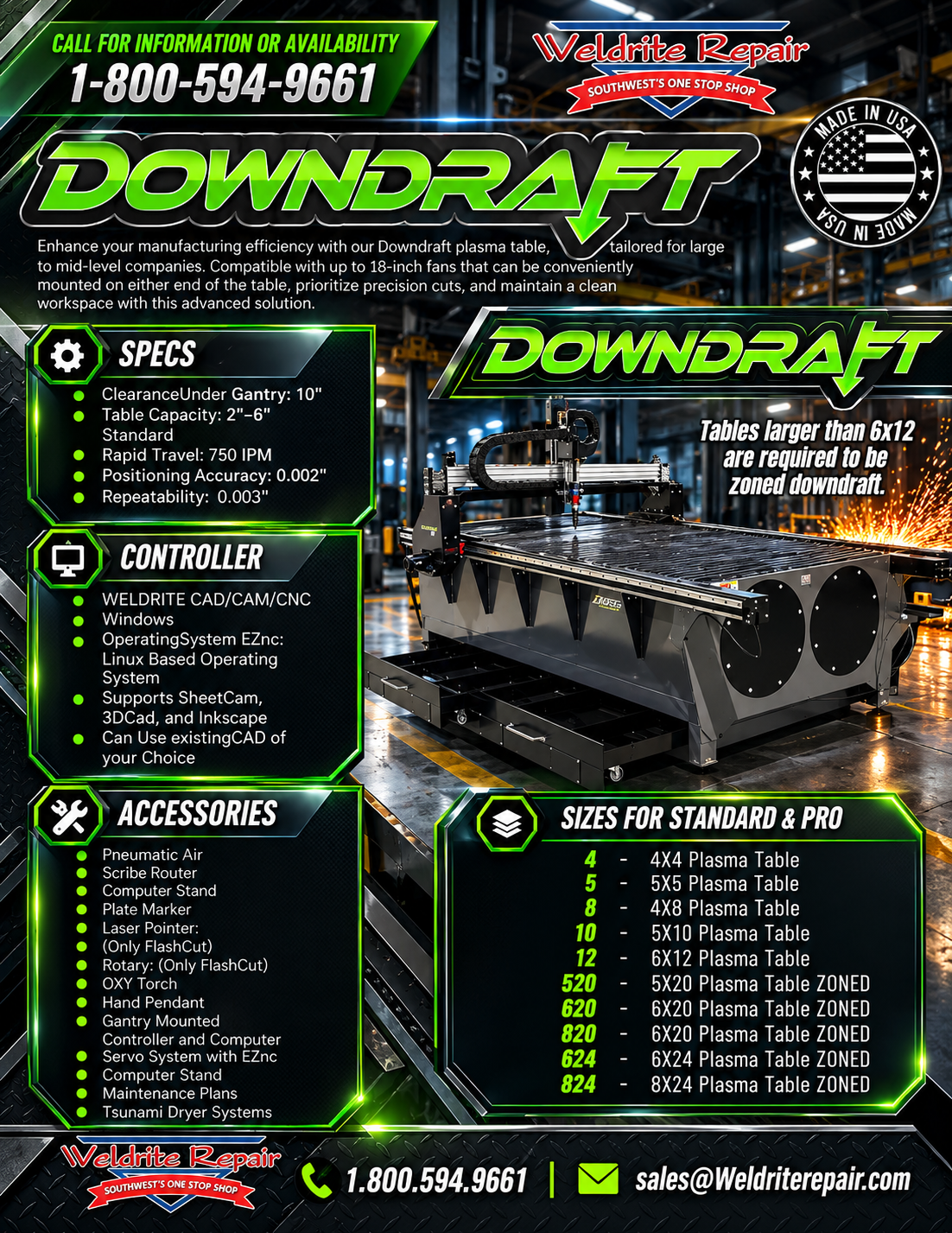

Downdraft Plasma Table
Downdraft Plasma Table
In stock
Enhance your manufacturing efficiency with the Downdraft Plasma Table, a cutting solution designed for mid-level to large fabrication operations.
The downdraft design helps maintain a cleaner workspace while supporting precision plasma cutting. The system is compatible with fans up to 18 inches, which can be conveniently mounted on either end of the table.
The table combines precision CNC motion, advanced torch-height control, automated nesting capabilities, and a range of accessories to provide a versatile solution for metal fabrication.
Specifications
- Clearance Under Gantry: 10"
- Table Capacity: 2"–6" Standard
- Rapid Travel: 750 IPM
- Positioning Accuracy: 0.002"
- Repeatability: 0.003"
- Designed for downdraft operation
- Compatible with fans up to 18 inches
Important: Tables larger than 6×12 require zoned downdraft configuration.
Controller
The Downdraft Plasma Table supports:
- FlashCut All-In-One CAD/CAM/CNC
- Windows Operating System
- EZnc Linux-Based Operating System
- SheetCam support
- QCad support
- Inkscape support
- Ability to use existing CAD software of your choice
Features
- Precision plate alignment capabilities
- 750W AC servo motors
- High-precision Nidec Shimpo planetary gearboxes
- Sub-3-inch arc-minute accuracy
- Stingray Digital Torch Height Control (DTHC)
- Helical rack and pinion gears
- Industrial motor wiring
- Rapid speed up to 1,800 IPM
- Industrial gantry with 14-inch clearance
- Milled precision bearing rails
- TrueShape AUTO Nesting
- Previous-cut THC turn-off to help prevent unwanted diving
- Automatic lead-in on restart
- Motor current sensing
- Cut completion time progress meter
- Pneumatically controlled water level
- 10-inch water depth
- Removable slat trays
- 6-inch slats and 5-inch oversized cut area
- 33-inch table height
- Collision detection
- Ohmic sensing
- Magnetic torch / breakaway torch
- Industrial bearings
- Fully welded frame
- Adjustable leveling feet
- Ball screw Z-axis
- 22-inch operation screen
Accessories
Available accessories include:
- Pneumatic Air Scribe
- Router
- Computer Stand
- Plate Marker
- Laser Pointer — FlashCut only
- Rotary — FlashCut only
- OXY Torch
- Hand Pendant
- Gantry-Mounted Controller and Computer
- Servo System with EZnc
- Maintenance Plans
- Tsunami Dryer Systems
Plasma Cutter Options
Kjellberg Cutting Pierce
- K 200: 1-3/8"
- Smart Focus 200AMP: 1-1/4"
- Smart Focus 300AMP: 1-1/2"
- Smart Focus 400AMP: 2"
Hypertherm Pierce
- Powermax45 SYNC: 1/2"
- Powermax65 SYNC: 5/8"
- Powermax85 SYNC: 3/4"
- Powermax105 SYNC: 7/8"
- Powermax125: 1"
- MAXPRO200: 1-1/4"
- XPR170: 1-9/16"
- XPR300: 2"
- XPR460: 2-1/2"
Ideal For
- Metal fabrication shops
- Plasma cutting operations
- Large-plate processing
- Mid-level manufacturing
- Industrial fabrication
- Production cutting
- Shops looking for a cleaner downdraft cutting environment
