AL-5 | ALUMINUM DENT PULLING SYSTEM
AL-5 | ALUMINUM DENT PULLING SYSTEM
In stock

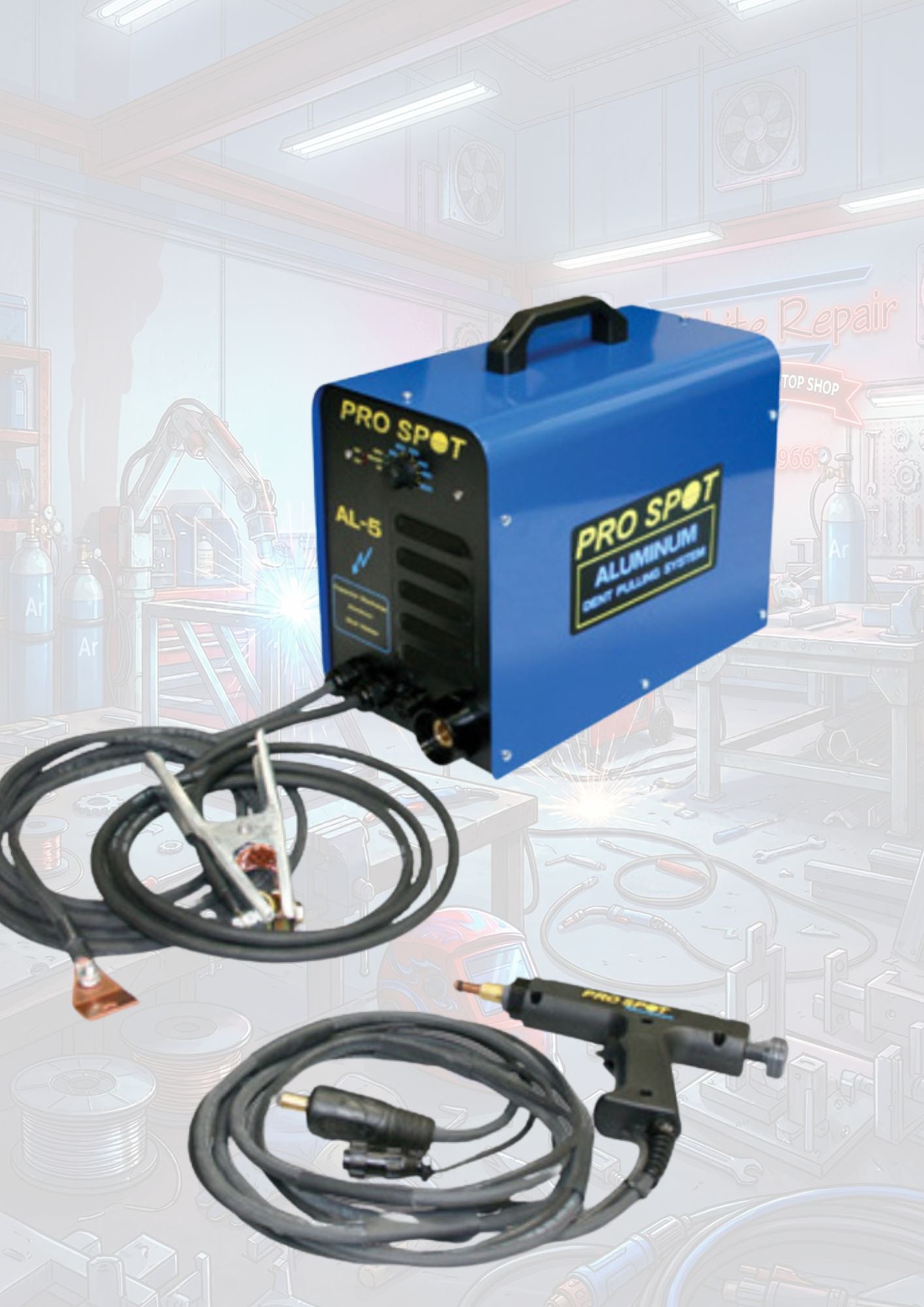

Pro Spot AL-5 Capacitor Discharge Stud Welder is designed for aluminum dent pulling and can also be used with steel studs for welding to UHSS panels with no or very little heat applied to the panels. The welder is very easy to use and is controlled by one knob to adjust weld power. The welder auto detects the line voltage between 110 VAC - 240 VAC.
Aluminum Weld Station
The AL-5 Aluminum Dent Pulling System comes packaged with Pro Spot's Aluminum Weld Station
Pull Bar
Designed for both aluminum and steel dent pulling. Includes adjustable foot swivel pads for mounting both vertically and horizontally.
Pro Pull Dent Puller
(Optional) Pro Pull is the latest in dent pulling technology for the collision industry. This tool makes dent pulling an art.
Dent Pulling
Simply insert the stud into the front of the weld shaft, press down and weld. Studs will be securely fastened to the surface and will allow you to pull dents out of the panel.
FEATURES
-
Aluminum Stud Welding
-
Pull Bar Dent Pulling
-
Pro Pull Dent Pulling
TECHNICAL SPECIFICATIONS
Input Voltage:
110 - 220V (Auto Detect)
Welding Amperage:
Up to 20,000A
Cable Length:
10 Ft.
Stud Diameters:
Standard 4mm x 16mm
M5, M6, M8 Optional
